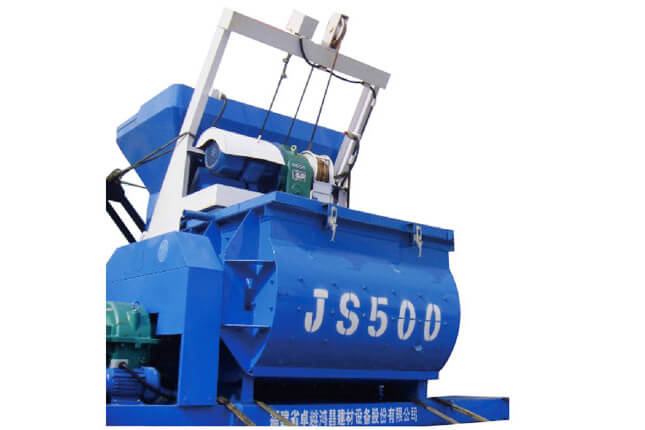

JS500 Mixer

Short Description:

JS series concrete mixer is a double horizontal axle forced mixer. It has reasonable design structure, strong mixing effect, good mixing quality, high efficiency, low energy consumption, novel layout, low noise, easy operation,high automation and convenient maintenance.

Product Detail

Product Tags


——Technical Specification——

Technical Specification
Model No. JS500
Feeding Volume(L) 800
Discharging Volume(L) 500
Rated Productivity(m3/h) ≥25
Maximum size of aggregate(mm)(pebble/stone) 80/60
Mix Rotate speed(r/min) 35
Leaf Blade Quantity 2×7
Mix Model No. Y180M-4
Motor Power(kw) 18.5
Hoist Model No. YEZ132S-4-B5
Motor Power(kw) 5.5
Water pump Model No. 50DWB20-8A
Power(kw) 0.75
Speed of hopper lift (m/min) 18
Outline Transport State 3030×2300×2800
L*W*H Working State 4486×3030×5280
Whole machine quality(kg) 4000
Discharge Height(mm) 1500
