QT6-15 block machine

Short Description:

QT series Concrete block machines offer the production of blocks, kerb stones, pavers and other precast concrete elements. With a production height of 40 up to 200mm it offers a wide range of products. Its unique vibration system vibrates vertically only, reducing wear on the machine and molds, allowing for maintenance-free productivity for years


Product Detail

Product Tags

1

——Features——

1.Block Making machine nowadays is widely used in construction for the mass production of blocks/pavers/slabs which are manufactured from concrete.

2. QT6-15 block machine model is made by HONCHA with more than 30 years' experiences. And its stable reliable working performance plus low maintenance costs make it as the favorite model among HONCHA customers.

3. With a production height of 40-200mm, customers can get back their investments within short time by its maintenance-free productivity.

4.Honcha's unique distribution system combines Traveling Material Bin and enclosed belt conveyor, the system's continuous movement is controlled by photoelectric switch. Thus make it easy to change the raw material mixing ratio and ensures promptitude and accuracy.

——Model Specification——

QT6-15 Model Specification
Main Dimension(L*W*H) 3150X217 0x2650(mm)
Usetu Mouding Aea(LW"H) 800X600X40~200(mm)
Pallet Size(LW"H) 850X 680X 25(mm/bamboo pallet)
Pressure Rating 8~1 5Mpa
Vibration 50~7OKN
Vibration Frequency 3000~3800r/min
Cycle Time 15~2 5s
Power (total) 25/30kw
Gross Weight 6.8T



★For reference only

——Simple Production Line——

1
ITEM MODEL POWER
01 Enhanced Mixer JS500 25kw
02 Dry mix conveyor By Order 2.2kw
03 QT 6-15 Block Machine QT 6-15 Type 25/30kw
04 Automaic Stacker For QTS-15 System 3kw
05 Pallets Conveying System For QTS-15 System 1.5kw
06 Blocks Conveying System For QTS-15 System 0.75kw
Block Sweeper For QTS-15 System 0.018kw
B Face Mix Section (optional) For QTS-15 System
Fork Lift(Optional) 3T

★The above items can be reduced or added as needed. such as: cement silo(50-100T),screw conveyor, batching machine, automatic pallet feeder ,wheel loader, folk lift, air compressor.

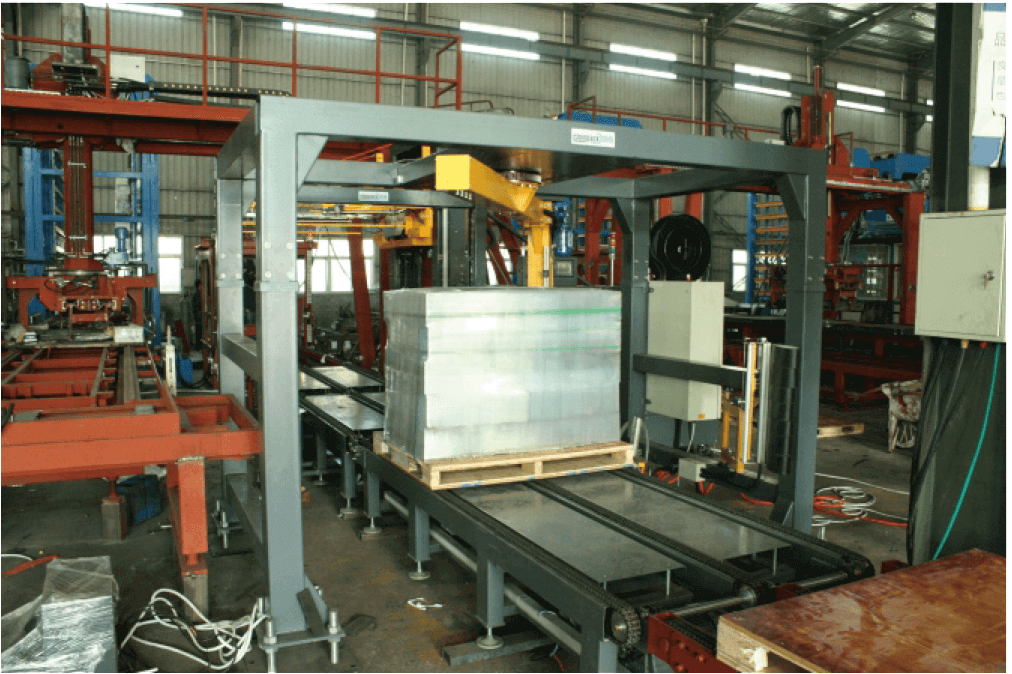

Automatic packing machine

Automatic packing machine

Planettary mixer

Planettary mixer

Control panel

Control panel

Batching machine

Batching machine

—— Production Capacity——

 Honcha Production Capacity
Block Machine Model No. Item    Block Hollow Brick Paving Brick Standard Brick
390×190×190 240×115×90 200×100×60 240×115×53
8d9d4c2f8 7e4b5ce27  4  7fbbce234
QT6-15 Number of blocks per pallet 6 15 21 30
Pieces/1 hour 1,260 3,150 5,040 7,200
Pieces/16hours 20,160 50,400 80,640 115,200
Pieces/300 day(two shifts) 6,048,000 15,120,000 24,192,000 34,560,000

★Other brick sizes not mentioned may provide drawings to inquire about specific production capacity.
