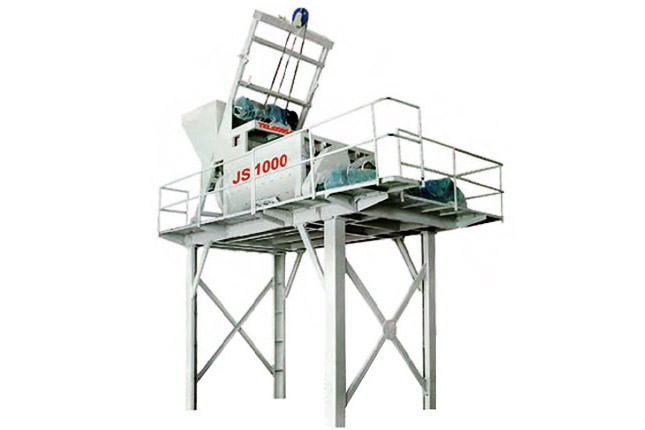

JS1000 Mixer

Short Description:

JS series concrete mixer is a double horizontal axle forced mixer. It has reasonable design structure, strong mixing effect, good mixing quality, high efficiency, low energy consumption, novel layout, low noise, easy operation,high automation and convenient maintenance.


Product Detail

Product Tags

JS1000

——Technical Specification——

Technical Specification
Model No. JS1000
Feeding Volume(L) 1600
Discharging Volume(L) 1000
Rated Productivity(m3/h) ≥50
Maximum size of aggregate(mm)(pebble/stone) 80/60
Mix Rotate speed(r/min) 25.5
Leaf Blade Quantity 2×8
Mix Model No. Y225S-4
Motor Power(kw) 37
Hoist Model No. YEZ160S-4
Motor Power(kw) 11
Water pump Model No. KQW65-100(I)
  Power(kw) 3
Speed of hopper lift (m/min) 21.9
Outline Transport State 4640×2250×2250
Dimension
L*W*H Working State 8765×3436×9540
Whole machine quality(kg) 8750
 Discharge Height(mm) 2700/3800
