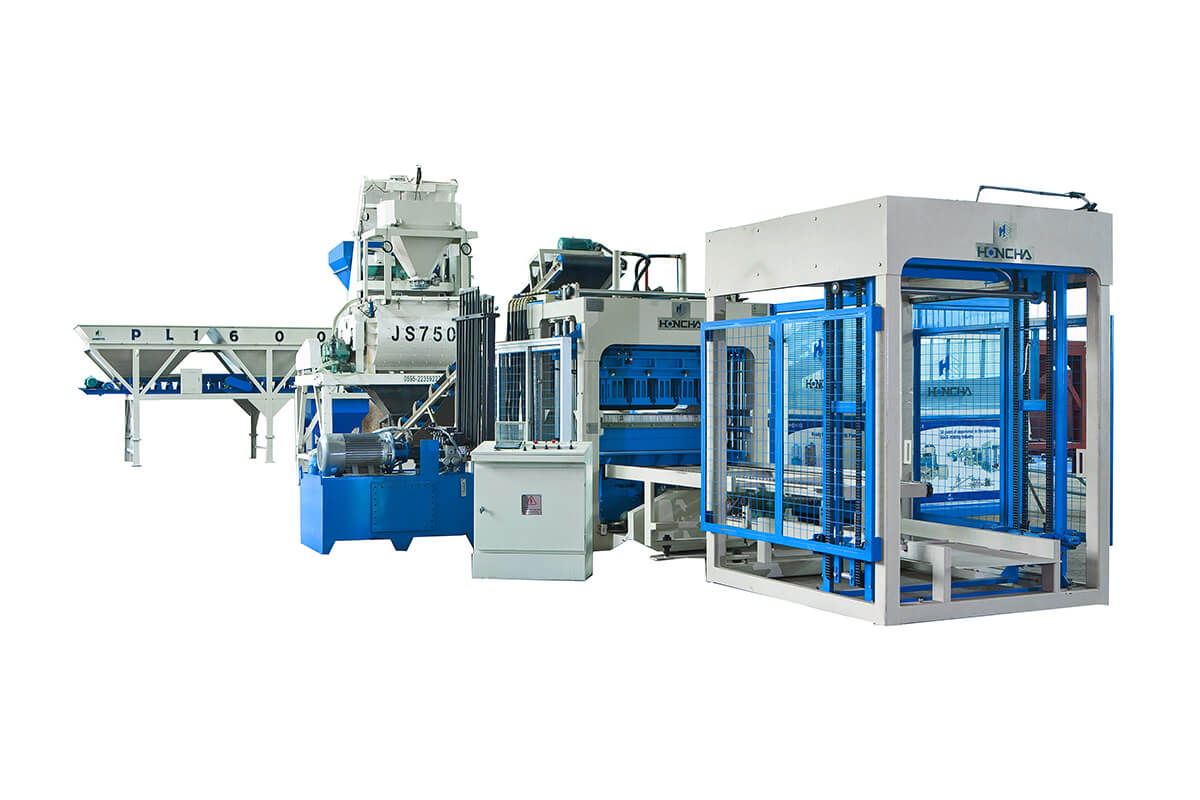

Simple Automatic Concrete Block Production Line

Short Description:

You put different aggregates in the Batching Station, it will measure them to the required weight and then combine with the cement from cement silo. All of the materials will then be sent to the mixer. After being mix evenly, the belt conveyer will convey the materials to the Block Making Machine. The finished blocks after being cleaned by the block sweeper will be transferred to the stacker. The folk lift or two workers can take the blocks to the yard for natural curing.

Send email to us Download as PDF

Product Detail

Product Tags

——Features——

Simple production line: Putting different aggregates in the Batching Station, it will measure them to the required weight and then combine with the cement from cement silo. All of the materials will then be sent to the mixer. After being mix evenly, the belt conveyer will convey the materials to the Block Making Machine. The finished blocks after being cleaned by the block sweeper will be transferred to the stacker. The folk lift or two workers can take the blocks to the yard for natural curing.

——Component——

1 Batching and Mixing Plant

The batching and mixing system consists of a multi-component batching station which automatically weighs and conveys the aggregate to the compulsory mixer. The cement is transported from the cement silo using a screw conveyor and automatically weighed at the mixer. Once the mixer has completed its cycle the concrete will be transported using our overhead skip system to the fully automatic block machine system.

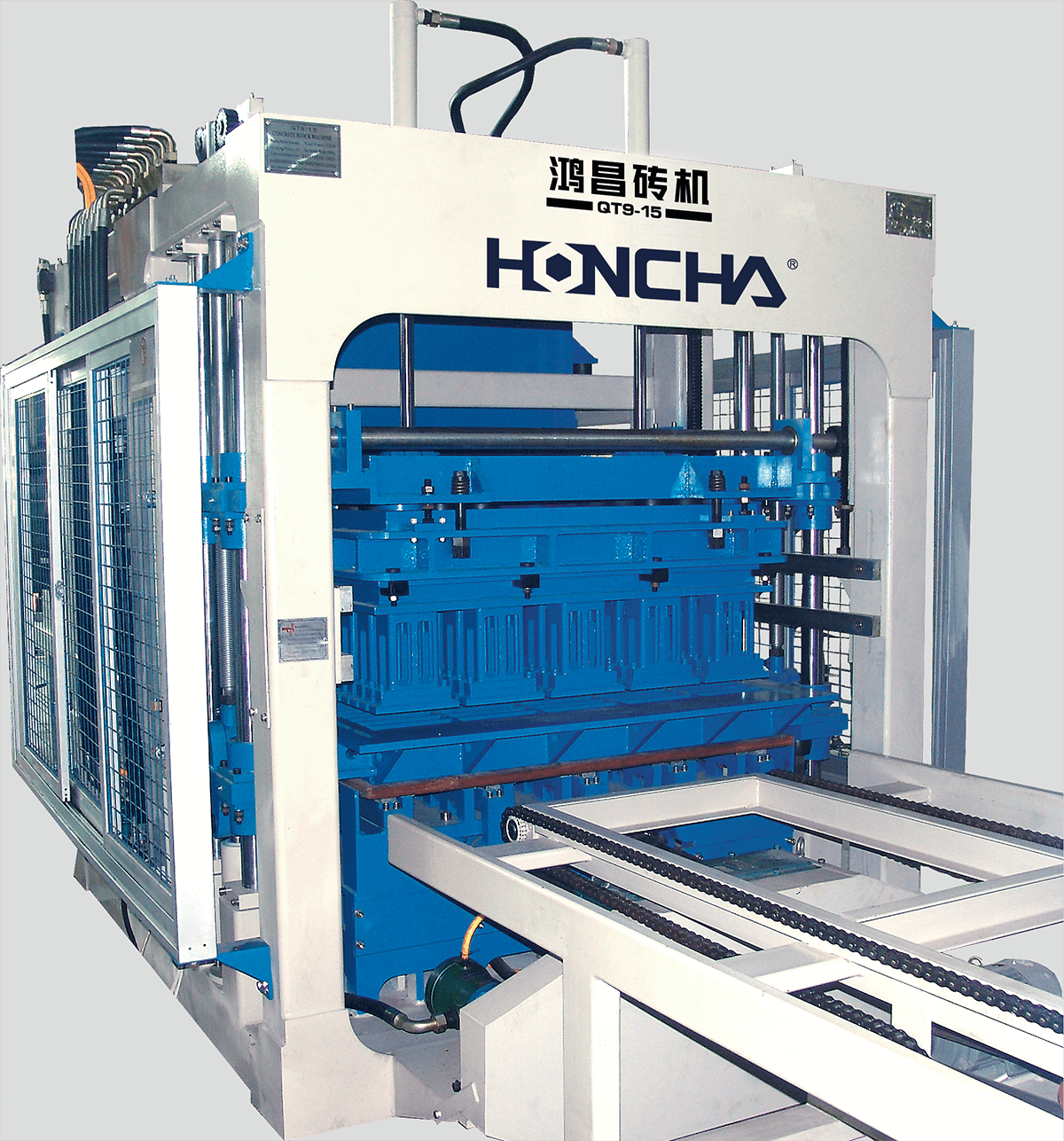

2、 Block machine

The concrete is pushed into place by a feeder box and spread evenly into the bottom female mould. The top male mould is then inserted into the bottom mould and the use synchronized table vibration from both moulds to compact the concrete into the desired block. The machine can have a fully automatic face mix section added to allow the production of colored pavers.

Optional block machine models:QT6-15,QT8-15,QT9-15,QT10-15,QT12-15.

3、Stacker

The fresh blocks are cleaned to make sure they are all the same height and then transported to the stacker. Then the fork lift will take all pallets of blocks to the yard for natural curing.

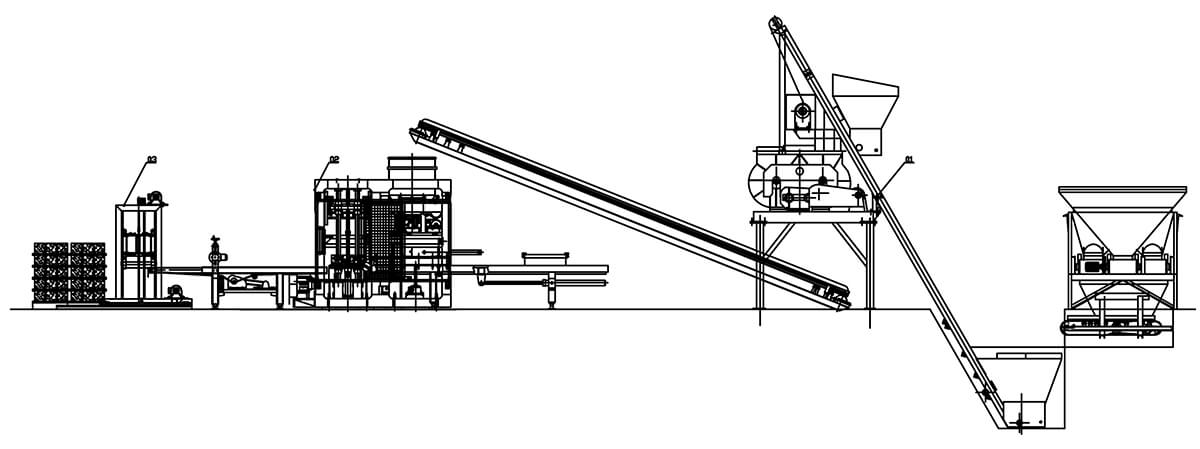

——Simple Automatic Production Line——

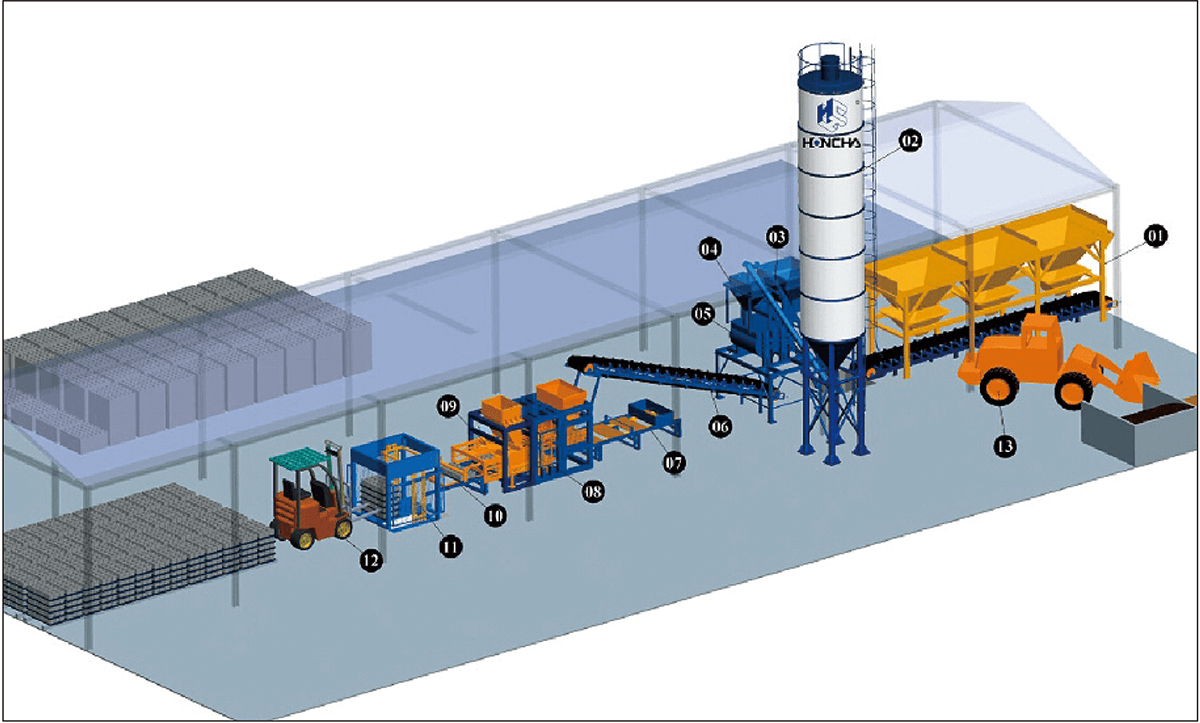

Simple Automatic Concrete Block Production Line: Items
1 Automatic Batching Station	2 Cement Silo	3 Screw Conveyor
4 Cement Scale	5 Compulsory Mixer	6 Belt Conveyor
7 Pallet Conveying System	8 Concrete Block Machine	9 Face Mix Section
10 Blocks Conveying System	11 Automatic Stacker	12 Fork Lift
13 Wheel Loader

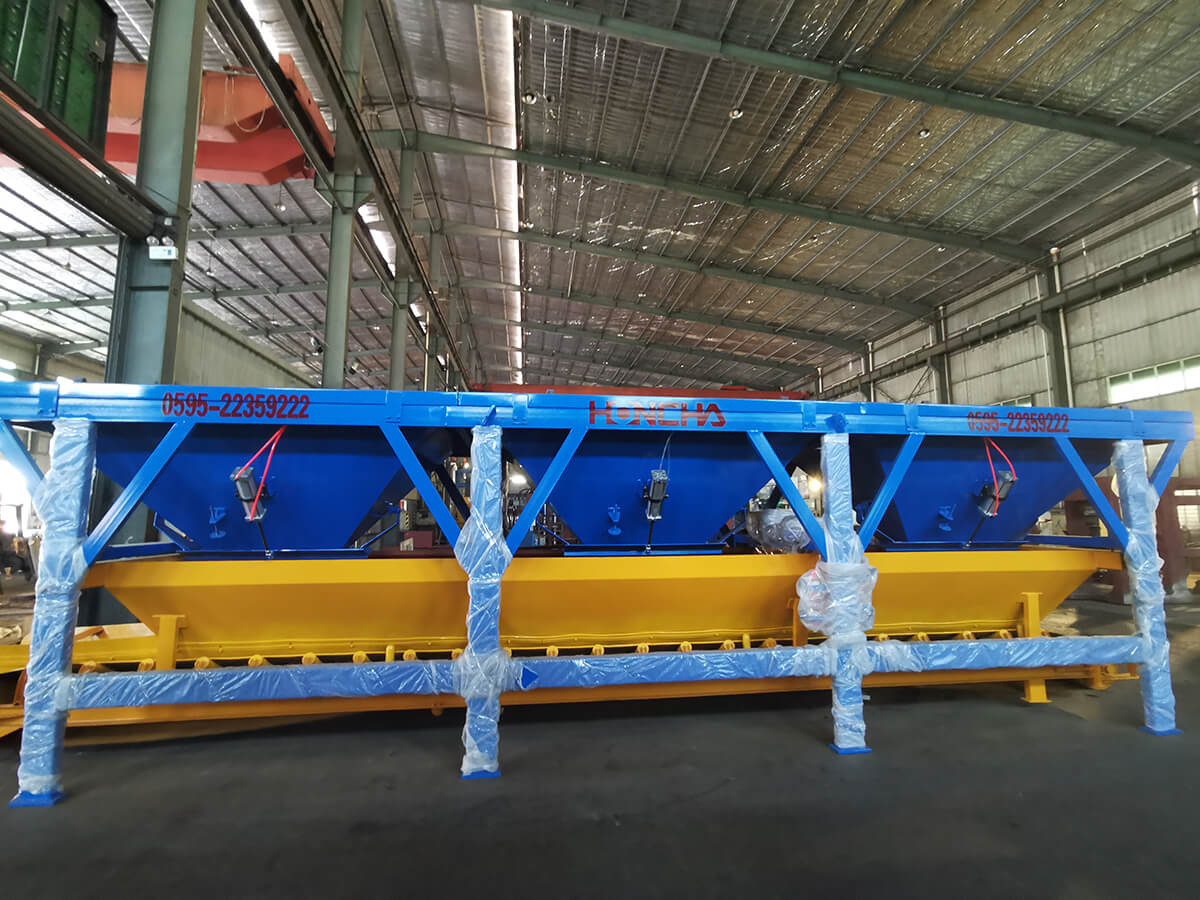

Automatic batching station

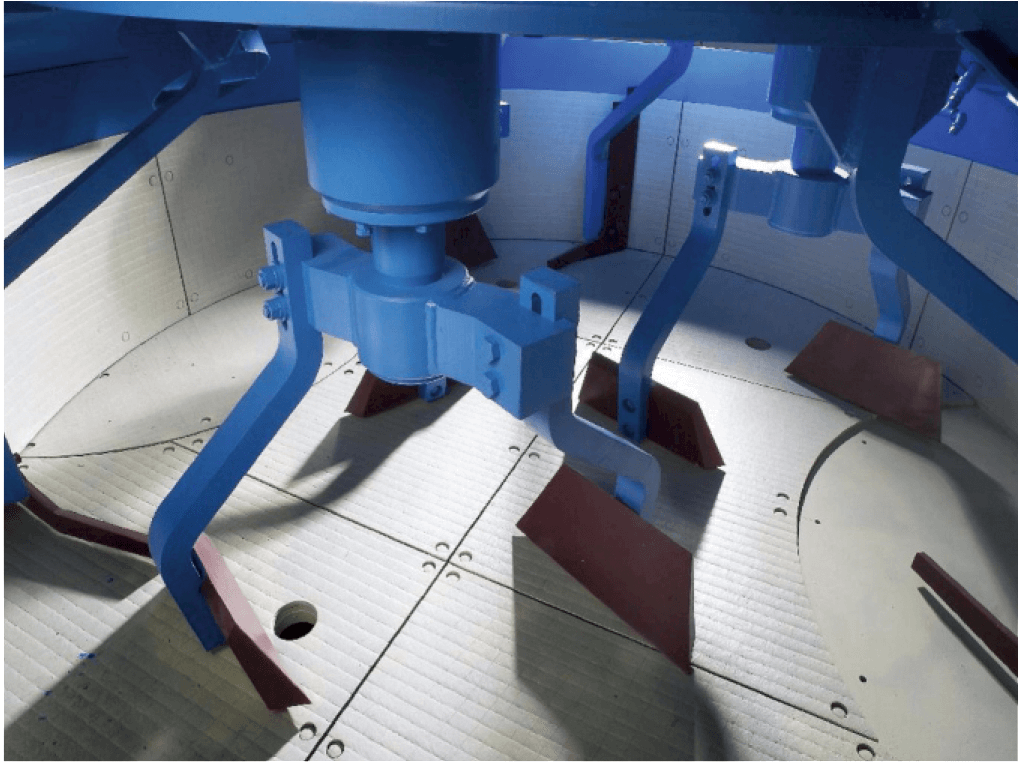

Compulsory mixer

—— Production Capacity——

Honcha Production Capacity
Block Machine Model No.	Item	Block	Hollow Brick	Paving Brick	Standard Brick
		390×190×190	240×115×90	200×100×60	240×115×53

QT6-15	Number of blocks per pallet	6	15	21	30
	Pieces/1 hour	1,260	3,150	5,040	7,200
	Pieces/16hours	20,160	50,400	80,640	115,200
	Pieces/300 day(two shifts)	6,048,000	15,120,000	24,192,000	34,560,000
QT8-15	Number of blocks per pallet	6+2	20	22	40
	Pieces/1 hour	1,680	4,200	5,280	9,600
	Pieces/16hours	26,880	67,200	84,480	153,600
	Pieces/300 day(two shifts)	8,064,000	20,160,000	25,344,000	46,080,000
QT9-15	Number of blocks per pallet	9	25	30	50
	Pieces/1 hour	1,890	5,250	7,200	12,000
	Pieces/16hours	30,240	84,000	115,200	192,000
	Pieces/300 day(two shifts)	9,072,000	25,200,000	34,560,000	57,600,000
QT10-15	Number of blocks per pallet	10	24	36	52
	Pieces/1 hour	1,800	4,320	6,480	12,480
	Pieces/16hours	28,800	69,120	103,680	199,680
	Pieces/300 day(two shifts)	8,640,000	20,736,000	31,104,000	59,904,000
QT12-15	Number of blocks per pallet	12	30	42	60
	Pieces/1 hour	2,520	6,300	10,080	14,400
	Pieces/16hours	40,320	100,800	161,280	230,400
	Pieces/300 day(two shifts)	12,096,000	30,240,000	48,384,000	69,120,000
